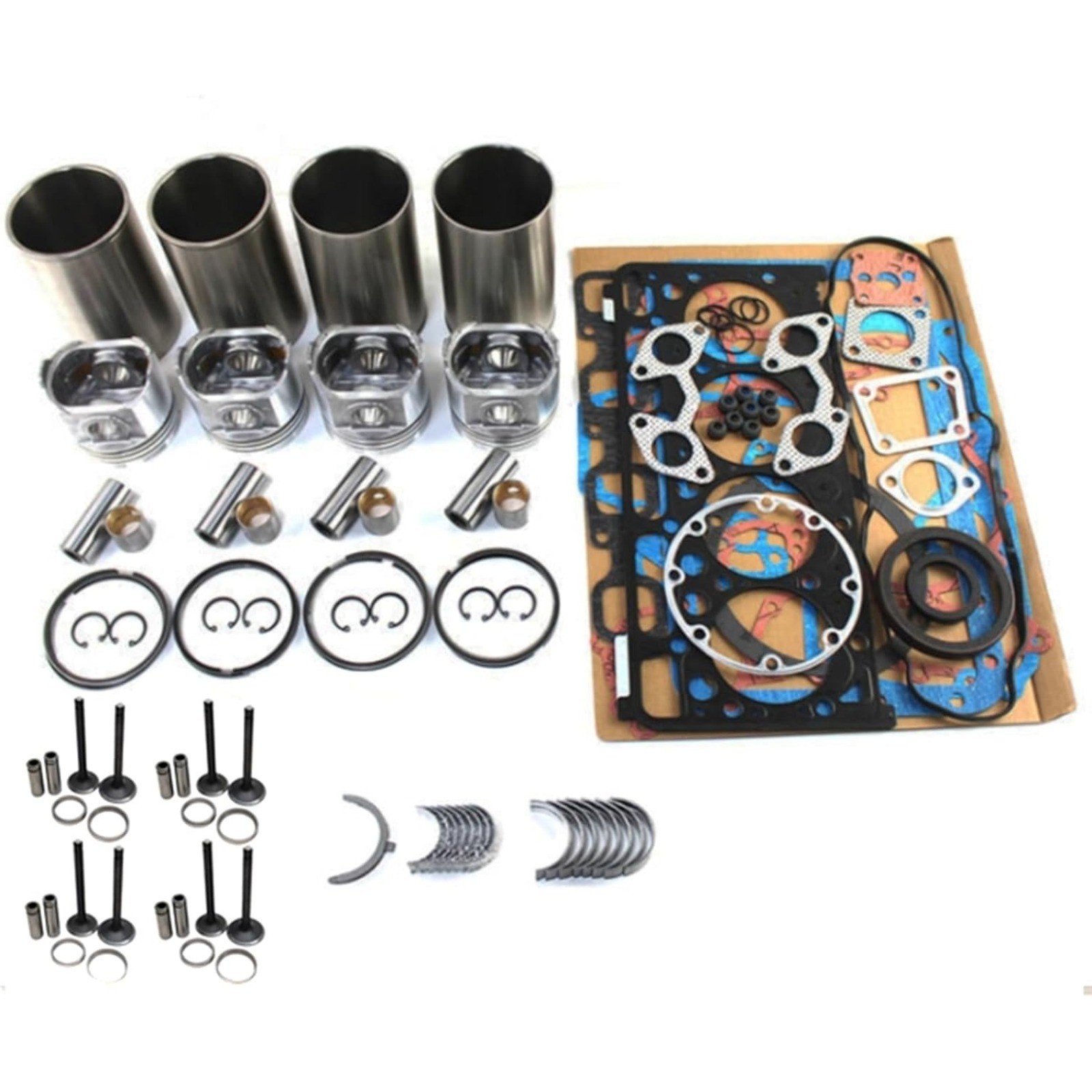

V2203 Overhaul Rebuild Kit For Kubota V2203 V2203E V2203B V2203T V2203-M Engine

Product Name:V2203 Engine Overhaul Rebuild Kit

Part number:

1G780-21113 19077-21112 1G796-21112 16641-21112

1G78021113 1907721112 1G79621112 1664121112

Application:

Compatible with Kubota V2203 V2203E V2203B V2203T V2203-M V2203-M-IDI V2203MDI-Tier II V2203-M-IDI-E2B-BC-1 V2203-M-IDI-E2B-BC-3 V2203-M-IDI-E2B-BC-3-Tier II V2203-M-IDI-E2B-BC-5-Tier II Engine

Compatible with Kubota Excavator KX121-2 KX121-3ST KX121-3STCA KX161-2 KX161-3S KX161-3SCA KX161-3ST KX161-3STCA U-45 U45-3ST

Compatible with Bobcat Excavator 331 334 335 337 341 430 435 E42 E45 E50

Compatible with Bobcat Toolcat Utility Vehicle 5600 5610

Compatible with Bobcat Skid Steer Loader S130 S150 S160 S175 S185 S205 T110 T140 T180 T190 753 753C 753F 753G 753H 753L 763 763C 763F 763G 773 773C 773F 773G 7753

This Product size:

Piston Φ87mm TL 80.0mm Pin Diameter: 25.0*64.0mm

1.Piston 1G780-21113, Ring ( 1A091-21050 ): 2.0H*2.0*5.0mm

2.Piston 19077-21112, Ring ( 17331-21050 ): 2.5H*2.0*5.0mm

3.Piston 1G796-21112, Ring ( 1G790-21053 ): 2.0*2.0*4.0mm ( Combustion Chamber 40mm )

4.Piston 16641-21112, Ring ( 17331-21050 ): 2.5H*2.0*5.0mm ( Combustion Chamber 46mm )

This package includes:

1 Set Full Gasket Kit with Head Gasket

1 Set STD Crankshaft / Main Bearing

1 Set STD Connecting Con Rod Bearing

1 Set STD Thrust Washer / Bearing

4 Pieces STD Cylinder Liners (Semi-finished)

4 Pieces STD Piston

4 Sets STD Piston Rings

4 Pieces STD Piston Pin

4 Pairs STD Piston Clip

4 Pieces Intake Valves

4 Pieces Exhaust Valves

4 Pieces Intake Valves Seats

4 Pieces Exhaust Valves Seats

4 Pieces Rod Bushings

8 Pieces Valve Guides
